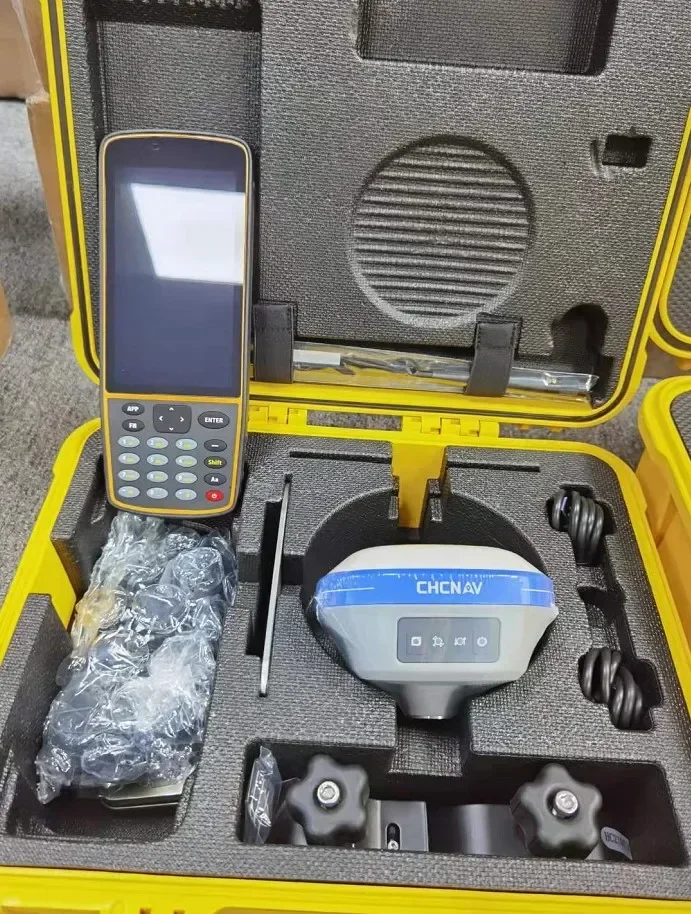

Used Functionally intact 90% new Professional Data Controller GPS RTK Data Collector CHC HCE320 Handheld GNSS Cost-effective
Used Functionally intact 90% new Professional Data Controller GPS RTK Data Collector CHC HCE320 Handheld GNSS Cost-effective
Couldn't load pickup availability
HCE320 comes with LandStar7 software. Please select the corresponding language when purchasing.
It is a used product. We offer a one-year warranty. We guarantee the functionality of each machine is intact. If there are quality issues, please contact the salesperson in a timely manner to replace the product

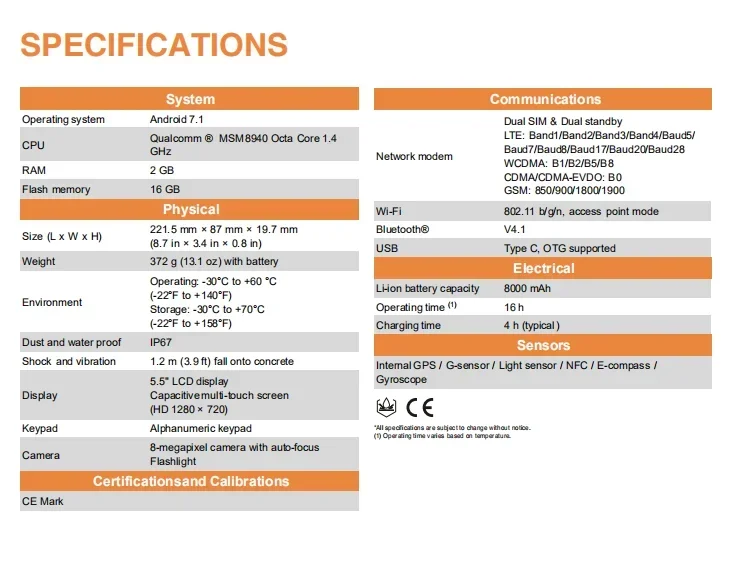

| CHCNAV Controller HCE320 |
|
| System |
|
| Operating system |
Android 7.1 |
| CPU |
Qualcomm MSM8940 Octa Core 1.4 GHz |
| RAM |
2 GB |
| Flash memory |
16 GB |
| Physical |
|
| Size (L x W x H) |
221.5mm*87mm*19.7mm (8.7in*3.4in*0.8in) |
| Weight |
372g (13.1 oz) with battery |
| Environment |
Operating: -30 ℃ to +60 ℃ (-22 F to +140 F) Storage: -30 ℃ to +70 ℃ (-22 F to +158 F) |
| Dust and water proof |
IP67 |
| Shock and vibration |
1.2 m (3.9 ft) fall onto concrete |
| Display |
5.5" LCD display Capacitive multi-touch screen (HD 1280 720) |
| Keypad |
Alphanumeric keypad |
| Camera |
8-megapixel camera with auto-focus Flashlight |
| Certificationsand Calibrations |
|
| CE Mark |
|
| Communications |
|
| Network modem |
Dual SIM & Dual standby LTE: Band1/Band2/Band3/Band4/Baud5/Baud7/ Baud8/Baud17/Baud20/Baud28 WCDMA: B1/B2/B5/B8 CDMA/CDMA-EVDO: B0 GSM: 850/900/1800/1900 |
| Wi-Fi |
802.11 b/g/n, access point mode |
| Blue tooth |
V4.1 |
| USB |
Type C, OTG supported |
| Electrical |
|
| Li-ion battery capacity |
8000 mAh |
| Operating time |
16 h |
| Charging time |
4 h (typical) |
| Sensors |
|
| Internal GPS / G-sensor / Light sensor / NFC / E-compass / Gyroscope |
|
